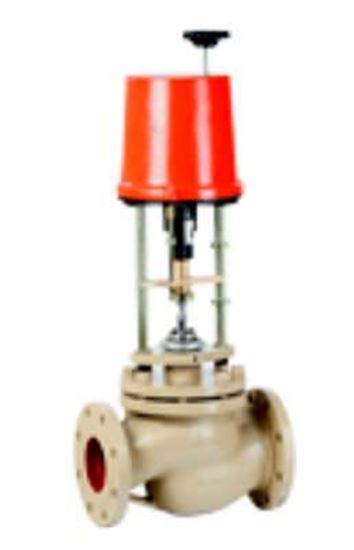

2/2-Way Motorised Control Valves with Electric Actuator

Nhà sản xuất: Avcon

Nhận xét sản phẩm

Quantity:

Description

SPECIFICATIONS :
Sizes	15 mm (½”) to 150mm (6”).
Unified Flanges	As per ANSI CI. 150 and PN 16.
Pressure Rating	As per ANSI CI. 150,CI. 300, PN 16 & PN 25.
Pressure Temp. rating	As per ASTM-A-16.34.
Gland Packing	Carbon filled Teflon for temp. upto 220°C.
Design Standard	ASME B16.34.
Leakage	As per ASME 16.104 CI.IV (0.01% of Kv) for 5512A Series.
Face to Face	As per DIN-3202. Part I Series F1 (All materials).
Testing Standard	As per ISA S 7501.
Type of Plug	On-Off, Equal percentage or Linear.
Seat	Screwed type replaceable.
Body & Bonnet Material	CS-ASTM A 216 WCB (DIN 1.0619 GS-C 25). SS-ASTM A351CF8M (DIN1.4408) (GX6 Cr.Ni MO1810) SS-ASTM A351 CF8 (DIN1.4301)
Plug Material	SS AISI 420/316.
Seat Ring	SS AISI 420/316.
Spindle	410/316 Ground, Burnished & Hard Chromed.
Studs	ASTM A193 Gr. B7.
Hex. Nuts	ASTM A194 Gr. 2H.
Body Packing	Cr.Ni Foil coated with graphite.
Rangeability	Linear 50:1.
Fluid	Hot Thermic Fluid, Hot Water, Hot Steam, etc.
Note	5512A are Metal Seated Valves.

ACTUATOR :
Electric Actuator	Series KN.
Housing	Aluminium Silicon alloy heat treated.
Gears	Steel hobbed, toughened gears.
Electric Motor	Single phase, permanent split phase capacitor type class ‘F’ insulated motor.
Electric Supply	220/240,110,24 Volts 50/60 Hz, AC.
Switching cycles	Upto 240 cys per hour for small size valves and for large size valves refer to AVCON. (Switching cycles is meant for duration of less than 0.1 second).
Actuator Yoke	Steel rods with position indicator assembly or Cast Carbon Steel casting.
Stem Tension	Through belleville packed spring.
Valve Position on Failure of Electricity	Stayput.
Control Suitability	Actuator is suitable for On-Off, Anticipatory, PI, PID Control system.
For further details of Actuator refer to Actuator leaflet ‘KN’ series.

SPECIFICATION TABLE

Catalogue Number	Size	Orifice Size	Flow Factor Kv	Safe Working Pressure	Actuator				Stroke (Approx.)	Travel time (Approx.)
	Size	Orifice Size	Flow Factor Kv	Safe Working Pressure	KN-02	KN-05	KN-10	KN-25	Stroke (Approx.)	Travel time (Approx.)
	(mm)	(mm)	M³/hr.	Bar	Working Pressure (Bar)				mm	Secs.
5512A155/WCBF x KN 02/05	15	18	4.0	40	25	40	-	-	20	48
5512A205/WCBF x KN 02/05	20	22	6.3	40	25	40	-	-	20	49
5512A255/WCBF x KN 02/05	25	25	10	40	20	35	-	-	20	48
5512A405/WCBF x KN 02/05	40	40	25	40	10	20	-	-	20/30	48
5512A505/WCBF x KN 05/10	50	50	40	40	-	10	40	-	30	80
5512A655/WCBF x KN 05/10	65	65	63	40	-	5	30	-	30	80
5512A805/WCBF x KN 10	80	80	100	40	-	-	20	-	30	60
5512A1005/WCBF x KN10/25	100	100	160	40	-	-	12	14	30	60
5512A1505/WCBF x KN10/25	150	150	400	40	-	-	4	7	50	100

2/2 WAY FINNED BONNET (WCBF) CONTROL VALVES WITH ELECTRIC ACTUATOR

BILL OF MATERIAL

Item	Parts	Material
1	Body	SS ASTM A351CF8/CF8M
		CS ASTM A216, Gr. WCB,
		SGI
2	Seat	SS AISI 420/ SS AISI 316
3	Gasket	Foil coated with Cr. Ni.Graphite
4	Plug	SS AISI 420/ SS AISI 316
5	Duro Bush	PTFE Lined & coated,
5	Duro Bush	SS backed
6	Bonnet	SS ASTM A351CF8/CF8M
		CS ASTM A 216, Gr. WCB
		SGI
7	Studs/ Nuts	IS 1363, ASTM A193, Gr.B7
7	Studs/ Nuts	IS 1363, ASTM A 194, Gr.2H
8	Gland Packing	Graphited PTFE
9	Gland Nut	SS AISI 304
10	Yoke Nut	CS ASTM A216, Gr. WCB
11	Actuator	Electric Actuator*

*Refer to actuator leaflet for details of components.

TECHNICAL DATA TABLE

Valve Size in mm	5	20	25	40	50	65	80	100	150
Port Sizes 2-way	18	22	25	40	50	65	80	100	150
Kv. M³/hr.	4	6.3	10	25	40	63	100	160	400
Travel	20	20	20	20	30	30	30	30	30
Travel	30	30	30	30	30	30	30	30	50
Electric Actuator	KN 02	KN 02	KN 02	KN 05	KN 05	KN 05	KN 10	KN 10	KN 10
Electric Actuator	KN 05	KN 05	KN 05	KN 05	KN 10	KN 10	KN 10	KN 25	KN 25

DIMENSIONS (IN MM)

Catalogue Number	Size	Electric Actuator	A	B	C	F x G or ØD	Wt.Kg. (Approx.)	Envelop Size L x H x W (Approx.)	Box Wt. Kg. (Approx.)
Catalogue Number	Inch	Electric Actuator	A	B	C	F x G or ØD	Wt.Kg. (Approx.)	Envelop Size L x H x W (Approx.)	Box Wt. Kg. (Approx.)
5512A155/WCBF x KN 02	½	KN 02	130	44.5	553	215 x 142	9.0	648 x 240 x 167	11.0*
5512A151/WCBF x KN 05	½	KN 05	130	44.5	580	Ø178	9.0	675 x 203 x 203	12.0*
5512A205/WCBF x KN 02	3/4	KN 02	150	49	553	215 x 142	10.0	652 x 240 x 167	12.0*
5512A201/WCBF x KN 05	3/4	KN 05	150	49	580	Ø178	10.0	679 x 203 x 203	13.5*
5512A255/WCBF x KN 02	1	KN 02	160	54	608	215 x 142	12.5	712 x 240 x 167	13.0*
5512A251/WCBF x KN 05	1	KN 05	160	54	635	Ø178	12.5	739 x 203 x 203	15.5*
5512A405/WCBF x KN 02	1 ½	KN 02	200	63.5	621	215 x 142	17.0	735 x 240 x 167	22.0*
5512A401/WCBF x KN 05	1 ½	KN 05	200	63.5	650	Ø178	17.0	764 x 203 x 203	24.0*
5512A505/WCBF x KN 05	2	KN 05	230	76	730	Ø178	23.0	856 x 203 x 203	31.7*
5512A501/WCBF x KN 10	2	KN 10	230	76	835	Ø225	32.0	961 x 250 x 250	41.0*
5512A655/WCBF x KN 05	2 ½	KN 05	290	89	755	Ø178	34.0	894 x 203 x 203	44.0**
5512A651/WCBF x KN 10	2 ½	KN 10	290	89	855	Ø225	40.0	994 x 250 x 250	51.0**
5512A805/WCBF x KN 10	3	KN 10	310	95.5	925	Ø225	55.0	1070 x 250 x 250	66.0**
5512A1005/WCBF x KN 10	4	KN 10	350	114.5	930	Ø225	77.0	1095 x 250 x 250	87.0**
5512A1001/WCBF x KN 25	4	KN 25	350	114.5	1012	Ø260	81.0	1177 x 285 x 285	86.0**
5512A1505/WCBF x KN 10	6	KN 10	480	139.5	988	Ø225	93.0	1178 x 250 x 250	93.0**
5512A1501/WCBF x KN 25	6	KN 25	480	139.5	1070	Ø260	97.0	1260 x 285 x 285	109.0**

Note:

* Weight of cardboard + PUF Box Packing. Which may change for Export when packed in wooden box. ** Weight of Wooden Box Packing.

Note:

Technical specifications details & dimensions are subject to change without prior notice.
Dimensions in the table are approximate subject to final confirmation by AVCON.
