  4. RTD Series | CairindiaVietnam | Lappro

RTD Series | CairindiaVietnam | Lappro

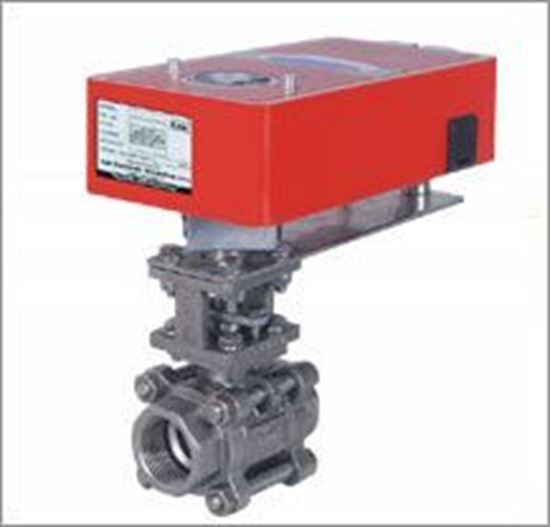

Picture of RTD Series | CairindiaVietnam | Lappro
“Cair” offers single phase Quarter turn damper actuator for valves and engineering use.
Nhà sản xuất: CAIR euromatiic
Nhận xét sản phẩm
0
DAMPER SERIES

CD Series TA Series CD Series TA Series
10-40Nm 10-40Nm 6-1ONm 6-1ONm
0-90°C 0-90°C 0-90°C 0-90°C
ON/OFF Control Modulating ON/OFF Control Modulating
24VAC/DC, 230VAC 24VAC/DC 24VAC/DC, 230VAC 24VAC/DC


CDF Series TAF Series CD Series TV Series
6-16Nm 6-16Nm 2-4Nm 10-40Nm
0-90°C 0-90°C 0-90°C 0-90°C
Spring Return Function
ON/OFF Control		 Spring Return Function
Modulating		 ON/OFF Control VAV Control
24VAC/DC, 230VAC 24VAC/DC 24VAC/DC, 230VAC 24VAC/DC, 230VAC

Ball Valves with Electric Actuator
Model Config DN Power Supply Control Signal Rated Pressure Pipe Connection
CD04-230-V2015/3015 2 way/ 3 way 15 mm    AC230V 2 point 4140kPa Internal screw ISO7/1
CD04-24-V2015/3015 AC/DC24V 3 point
TA04-24-V2015/3015 AC/DC24V O(2)...10VDC
CD04-230-V2020/3020 2 way/ 3 way 20 mm    AC230V 2 point 4140kPa
CD04-24-V2020/3020 AC/DC24V 3 point
TA04-24-V2020/3020 AC/DC24V O(2)...10VDC

Model Config DN Power Supply Control Signal Rated Pressure Pipe Connection
CD06-230-V2025/3025 2 way/ 3 way 25 mm    AC230V 3 point 2760kPa Internal screw ISO7/1
CD6-24-V2025/3025 AC/DC24V 3 point
TA06-24-V2025/3025 AC/DC24V 0(2)...10VDC
CD06-230-V2032/3032 2 way/ 3 way 32 mm    AC230V 3 point 2760kPa
CD06-24-V2032/3032 AC/DC24V 3 point
TA06-24-V2032/3032 AC/DC24V 0(2)...10VDC

Model Config DN Power Supply Control Signal Rated Pressure Pipe Connection
CD10-230-V2040/3040 2 way/ 3 way 40 mm AC230V 3 point 2760kPa Internal screw ISO7/1
CD10-24-V2040/3040 AC/DC24V 3 point
TA1 0-24-V2040/3040 AC/DC24V 0(2)...10VDC
CD1 0-230- V2050/3050 2 way/ 3 way 50 mm AC230V 3 point 2760kPa
CD10-24-V2050/3050 AC/DC24V 3 point
TA10-24-V2050/3050 AC/DC24V 0(2)...10VDC

Model Config DN Power Supply Control Signal Rated Pressure Pipe Connection
CD16-230-V2065/3065 2 way/ 3 way 65 mm AC230V 3 point 2760kPa Flange Pn16 (ISO 7005-2)
CD16-24-V2065/3065 AC/DC24V 3 point
TA16-24-V2065/3065 AC/DC24V 0(2)...10VDC
JD25-230-V2080/3080 2 way/ 3 way 80 mm AC230V 3 point 2760kPa
CD25-24-V2080/3080 AC/DC24V 3 point
TA25-24-V2080/3080 AC/DC24V 0(2)...10VDC

Model Config DN Power Supply Control Signal Rated Pressure Pipe Connection
CD16-230-V2100/3100 2 way/ 3 way 100 mm AC230V 3 point 2760kPa Flange Pn16 (ISO 7005-2)
CD16-24-V2100/3100 AC/DC24V 3 point
TA16-24-V2100/3100 AC/DC24V 0(2)...10VDC
JD25-230-V2125/3125 2 way/ 3 way 125 mm AC230V 3 point 2760kPa
CD25-24-V2125/3125 AC/DC24V 3 point
TA25-24-V2080/3080 AC/DC24V 0(2)...10VDC
Bufterfly Valve With Electric Actuator
Model Config DN Power Supply Control Signal Rated Pressure Pipe Connection
CD16-230-BV2040 2 way 40 mm    AC230V 3 point 1600kPa PN6/10/16
for wafer
CD16-24-BV2040 AC/DC24V 3 point
CD16-24-BV2040 AC/DC24V 0(2)...10VDC
CD16-230-BV2050 2 way 50 mm    AC230V 3 point 1600kPa
CD16-24-BV2050 AC/DC24V 3 point
CD16-24-BV2050 AC/DC24V 0(2)...10VDC

Model Config DN Power Supply Control Signal Rated Pressure Pipe Connection
CD25-230-BV2065 2 way 65 mm    AC230V 3 point 1600kPa PN6/10/16
for wafer
CD25-24-BV2065 AC/DC2 4V 3 point
TD25-24-BV2065 AC/DC24V 0(2)...10VDC
CD25-230-BV2080 2 way 80 mm    AC230V 3 point 1600kPa
CD25-24-BV2080 AC/DC24V 3 point
CD25-24-BV2080 AC/DC24V 0(2)...10VDC

Model Config DN Power Supply Control Signal Rated Pressure Pipe Connection
CD40-230-BV2100 2 way 100 mm    AC230V 3 point 1600kPa PN6/10/16
for wafer
CD40-24-BV2100 AC/DC24V 3 point
CD40-24-BV2100 AC/DC24V 0(2)...10VDC
CD25-230-BV2125 2 way 125 mm    AC230V 3 point 1600kPa
CD25-24-BV2125 AC/DC24V 3 point
CD25-24-BV2125 AC/DC24V 0(2)...10VDC

Model Power Supply Operating Pressure Differential-Pressure Sensor
TM04-24-VAV AC/DC24V Max.1000Pa 2...300Pa
TM06-24-VAV AC/DC24V Max.1000Pa 2...300Pa
TM10-24-VAV AC/DC24V Max.1000Pa 2...300Pa

Technical Data
Power Supply AC230V, AC/DC24V, AC120V
Variation ± 10%
Output Torque 40Nm
Running Time 60Sec
Output Angle 90° (93° Max)
Control Signal 3 & 2 point compatible
Overload Protection Automatic
Protection Rank IP54
Ambient Conditions -10---- +55°C    0----90% RH
Noise Level(max) 40dB(A)

Dimensions :-
Model Output Torque Hold Torque Power Supply Control Signal Operating Power Standstill Power Running Time Output Angle
CD1 0-230 10 10 AC230V 3 & 2 point 5.5 2.5 60 0....93°
CD10-24 10 10 AC/DC24V 3 & 2 point 5.5 1.0 60 0....93°
CD10-120 10 10 AC120V 3 & 2 point 5.5 2.5 60 0....93°

Optional Function
Model Feature Descriptions
TA40-24-P C/W built-in feedback potentiiometer: 10K y Potentiopmeter
TA**-24-S C/Mmicroswitches(3A@AC250V) which can be adjusted externally

Dimesion Drawing Wiring Decriptions
