Linear Control Electrical Actuator | HLC Series | CairindiaVietnam | Lappro

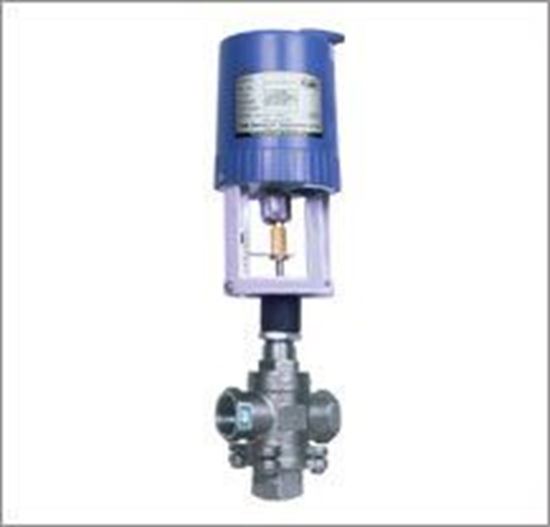

“Cair” Offers General HLC Actuator, an Electromechnical Linear Actuator Compact Version Suitable for Y type Valve Body or other Valves Linear Straight Pattern Control Valve.

Manufacturer: CAIR euromatiic

Be the first to review this product

Quantity:

Description

Features

	Torque : 800 N to 4000 N
	Light weight, compact modular concept for easy mounting on all types of control valves
	Bi-directional synchronous Motor with magnetism cluth
	Fireproof ABS Plastic enclosure
	Degree of Perfection IP 65
	Stabillized start speed to effectively avoid water hammering to prolonge the service of fluid lines
	Low noise level
	Continuous position indicator

Various Options

	ON / OFF Type
	Modulating Control.
	Signal input - 4 ~ 20mA / 0 ~ 10VDC
	Potentiometer Feedback.
	Additional Limit Switches (2 Nos).

Standard Voltage

	24 VAC
	230 VAC (On Request)

Application

2 Way / 3 Way Mixing diverting hot / Cold Water Lines in heating & Ventilation systems, Steam Flow control, Linear flow characteristic with 2 Way / 3 Way bypass lines

Y Type Control Valve Electrical Actuator Operated

2 Way / 3 Way Straight Pattern Control Valve Electrical Actuator
Operated

Size :

½” to 4” Screwed / Trilcover

½” to 4” Flanged to 150 #

MOC :

SS 304 / SS 316 / SS 316 L

Replaceable Seat :

PTFE / Glass Filled PTFE

Temp. :

Fluid Temp. 180 C

Size :

½” to 4” Screwed / Triclover

½” to 4” Flanged to 150 #

MOC :

SS 304 / SS 316 / SS 316 L

Replaceable Seat :

PTFE / Glass Filled PTFE

Temp. :

Fluid Temp. 180 C

Technical Specification
MODEL	POWER (WATT)	TOUQUE (N)	OPERATING TIME & STROKE
HLC-80	12 VA	800	50 HZ:4.6 s/mm 60 HZ:3.8 s/mm
HLC-100	12 VA	1000	50 HZ:8.3 s/mm 60 HZ:6.9 s/mm
HLC-250	12 VA	2500	50 HZ:4.6 s/mm 60 HZ:3.8 s/mm
HLC-400	12 VA	4000	50 HZ:8.3 s/mm 60 HZ:6.9 s/mm

Dimensions		(All dimensions are in MM)
MODEL	ØA	A	C	ØD	E
HLC-80	94	154	29.5	80	64
HLC-100	93	210.5	24	88.75	125.5
HLC-250	186	323	35	80	150
HLC-400	186	323	35	80	150
