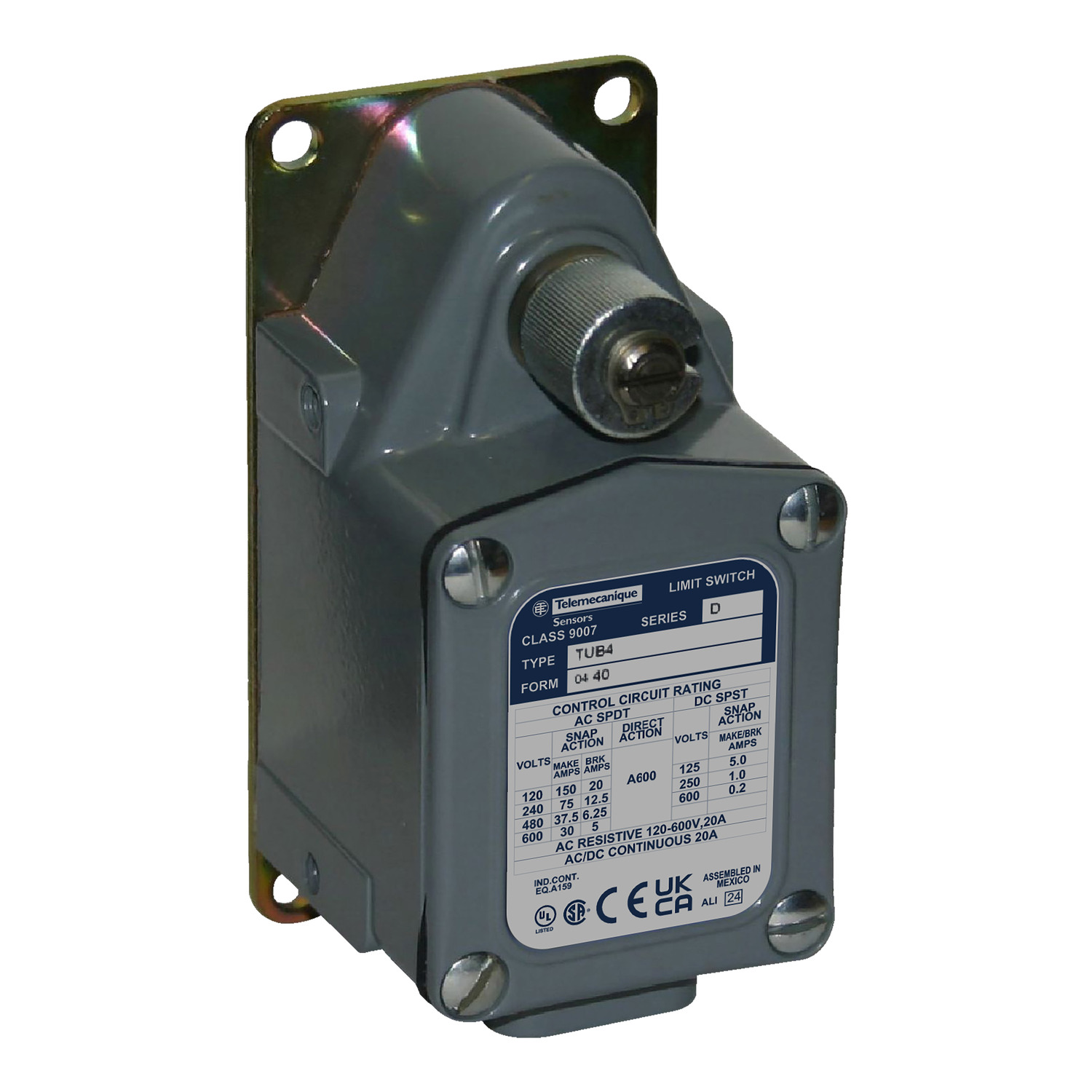

9007TUB4M12 LIMIT SWITCH 600VAC 12AMP T +OPTIONS
-
-
| range of product |
9007 |
|
|---|
| series name |
Severe duty mill |
|
|---|
| product or component type |
Limit switch |
|
|---|
| device application |
Universal mill switch |
|
|---|
| device short name |
9007T/FT |
|
|---|
| body type |
Fixed |
|
|---|
| head type |
Rotary head |
|
|---|
| sale per indivisible quantity |
1 |
|
|---|
Complementary
| base plate style |
Style B |
|
|---|
| body material |
Cast zinc |
|
|---|
| fixing mode |
By the body |
|
|---|
| movement of operating head |
Rotary |
|
|---|
| type of operator |
Spring return without operating lever |
|
|---|
| contact sequence number |
4 |
|
|---|
| function available |
Neutral position |
|
|---|
| switch actuation |
From left or right
CW and CCW |
|
|---|
| type of approach |
Lateral approach |
|
|---|
| electrical connection |
Screw-clamp terminals AWG 22...AWG 12 |
|
|---|
| cable entry |
1 entry for Pg 13.5 conforming to DIN 40430 |
|
|---|
| number of poles |
1 |
|
|---|
| switch function |
SPDT-DB |
|
|---|
| contact form |
Form Z |
|
|---|
| contact operation |
Snap action |
|
|---|
| contacts usage |
- |
|
|---|
| contacts material |
Silver flashed copper |
|
|---|
| positive opening |
Without |
|
|---|
| minimum torque for tripping |
12 lbf.in |
|
|---|
| maximum actuation speed |
130 ft/min with 30° cam angle, levers only
90 ft/min with 45° cam angle, levers only |
|
|---|
| tripping angle |
6 ° |
|
|---|
| maximum displacement angle |
89 ° |
|
|---|
| repeat accuracy |
+/- 0.004 in linear travel of cam on 1.5 in lever arm |
|
|---|
| contact code designation |
A600, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation
A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation
A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation
A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation
P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation
P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation
P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation |
|
|---|
| [Ithe] conventional enclosed thermal current |
20 A |
|
|---|
| [Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to IEC 609470-1
600 V (pollution degree 3) conforming to UL 508
600 V (pollution degree 3) conforming to CSA C22.2 No 14 |
|
|---|
| [Uimp] rated impulse withstand voltage |
2.5 kV AC for 1 minute conforming to CE
2.2 kV AC for 1 minute conforming to UL
2.64 kV AC for 1 minute conforming to CSA |
|
|---|
| short-circuit protection |
20 A Bussmann class CC KTK-R-21 fuse, type non-time delay |
|
|---|
| width |
2.25 in |
|
|---|
| height |
4.66 in |
|
|---|
| depth |
2.44 in |
|
|---|
| net weight |
2.5 lb(US) |
|
|---|
| terminals description ISO n°1 |
B (right side contact)
A (left side contact) |
|
|---|
Environment
| shock resistance |
30 gn for 9 ms conforming to IEC 60068-2-27 |
|
|---|
| vibration resistance |
10 gn (f= 10…55 Hz) conforming to IEC 60068-2-6 |
|
|---|
| NEMA degree of protection |
NEMA 1 conforming to Nema type 250
NEMA 2 conforming to Nema type 250
NEMA 4 conforming to Nema type 250
NEMA 12 conforming to Nema type 250
NEMA 13 conforming to Nema type 250 |
|
|---|
| IP degree of protection |
IP67 conforming to IEC 60529 |
|
|---|
| electrical shock protection class |
Class 0 conforming to IEC 61140 |
|
|---|
| ambient air temperature for operation |
-10…185 °F |
|
|---|
| ambient air temperature for storage |
-10…185 °F |
|
|---|
| protective treatment |
Corrosion resistant gray paint |
|
|---|
Offer Sustainability
| Sustainable offer status |
Green Premium product |
|
|---|
| REACh Regulation |
REACh Declaration |
|
|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|
| Mercury free |
Yes |
|
|---|
| RoHS exemption information |
Yes |
|
|---|
| Environmental Disclosure |
Product Environmental Profile |
|
|---|
| Circularity Profile |
No need of specific recycling operations |
|
|---|
Contractual warranty
| Warranty |
18 months |
|
|---|
-
