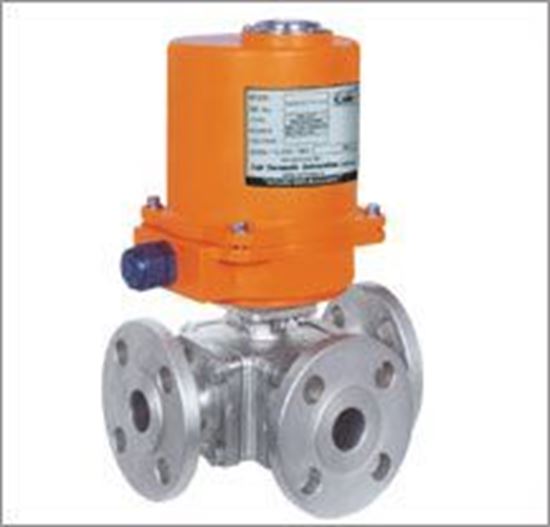

| Electrical Actuator |
| |
Technical Specifications |
| |
| Material |
Aluminium Alloy / Nylon |
| System Design |
Gear Motor |
| Casing Protection |
IP 67 |
| Working Temp. |
Upto 60°C |
|
| |
|
 |
Various Options |
| |
 |
ON / OFF Type - 220V AC |
|
Modulating Controller Signal input - 4 ~ 20mA / 1 ~ 5V DC / 2 ~10V DC |
|
Potentiometer feed back 4 ~ 20mA / 0 ~ 1 0VDC / 24VDC SUPPLY |
|
Additional Limit Switches (2 Units) |
|
| |
|
|
Valve |
| |
| Body |
ASTMA216Gr.WCB/ ASTM A351 Gr. CF8 - CF8M |
| Ball |
ASTM A351 Gr. CF8 - CF8M |
| Stem |
Stainless Steel AISI 304 / AISI 316 |
| Gland |
Stainless Steel AISI 304 /AISI 316 |
| Seat & Seals |
PTFE (Glass Filled Teflon, Carbon Filled Teflon) |
| Working Pressure |
ANSI150 |
| Pressure Rating |
ANSI 150 class |
| Temperature |
-20°C to 180°C |
| End Connection |
Flanged to ANSI 1 50 / ANSI 300 / PN16 |
| |
(All dimensions are in MM) |
|
 |
|
|
Dimensions:- |
| |
| (All dimensions are in MM) |
| MODEL |
Valve Size |
ØD |
L |
A |
Weight (Approx) |
| Inch |
MM |
S/E |
F/E |
| EL-A-SUZ-4O3-F-1 5 |
1/2 |
15 |
88.9 |
151 |
104 |
2.750 |
4.100 |
| EL-A-SUZ-4O3-F-2O |
3/4 |
20 |
98.55 |
167 |
112 |
3.850 |
5.500 |
| EL-B-SUZ-4O3-F-25 |
1 |
25 |
107.9 |
192 |
128 |
4.850 |
6.900 |
| EL-C-SUZ-4O3-F-32 |
1.1/4 |
32 |
117.34 |
208 |
140 |
8.500 |
- |
| EL-C-SUZ-403-F-4O |
1.1/2 |
40 |
127 |
219 |
163 |
13.950 |
10.00 |
| EL-D-SUZ-4O3-F-5O |
2 |
50 |
152.4 |
253 |
190.5 |
19.500 |
25.500 |
| EL-D-SUZ-4O3-F-65 |
2.1/2 |
65 |
177.8 |
302 |
293 |
- |
32.500 |
| EL-F-SUZ-4O3-F-8O |
3 |
80 |
190.5 |
307 |
318.5 |
- |
41.750 |
| EL-G-SUZ-4O3-F-1 OO |
4 |
100 |
228.6 |
370 |
367 |
- |
68.800 |
|
